A practical profile designed for cabinet lighting with a subtle grey finish. It blends easily into cabinet interiors while giving your lighting a polished edge.
| Model No. | XQ-562-Y1509 |
|---|---|

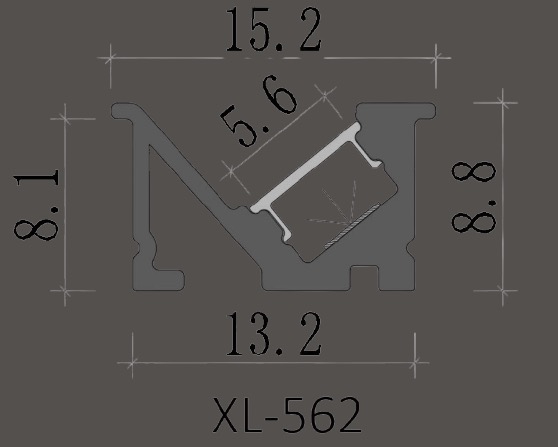

| External Dimension | W: 15.2mm * H: 8.8mm |
| Compatible LED Strip max width | 5mm |
| Material | Aluminum+PC |
| Aluminum Oxide Layer | 7~10µ |
| Surface Treatment | Anodising |
| Surface Color | Grey |
| Available Length | 3mtr |
| Lighting angle | 45° |
| Cover Material | Coverstro PC |
| Cover Color | Milky |
| Cover Type | Flat |
| Transmittance | 80% |

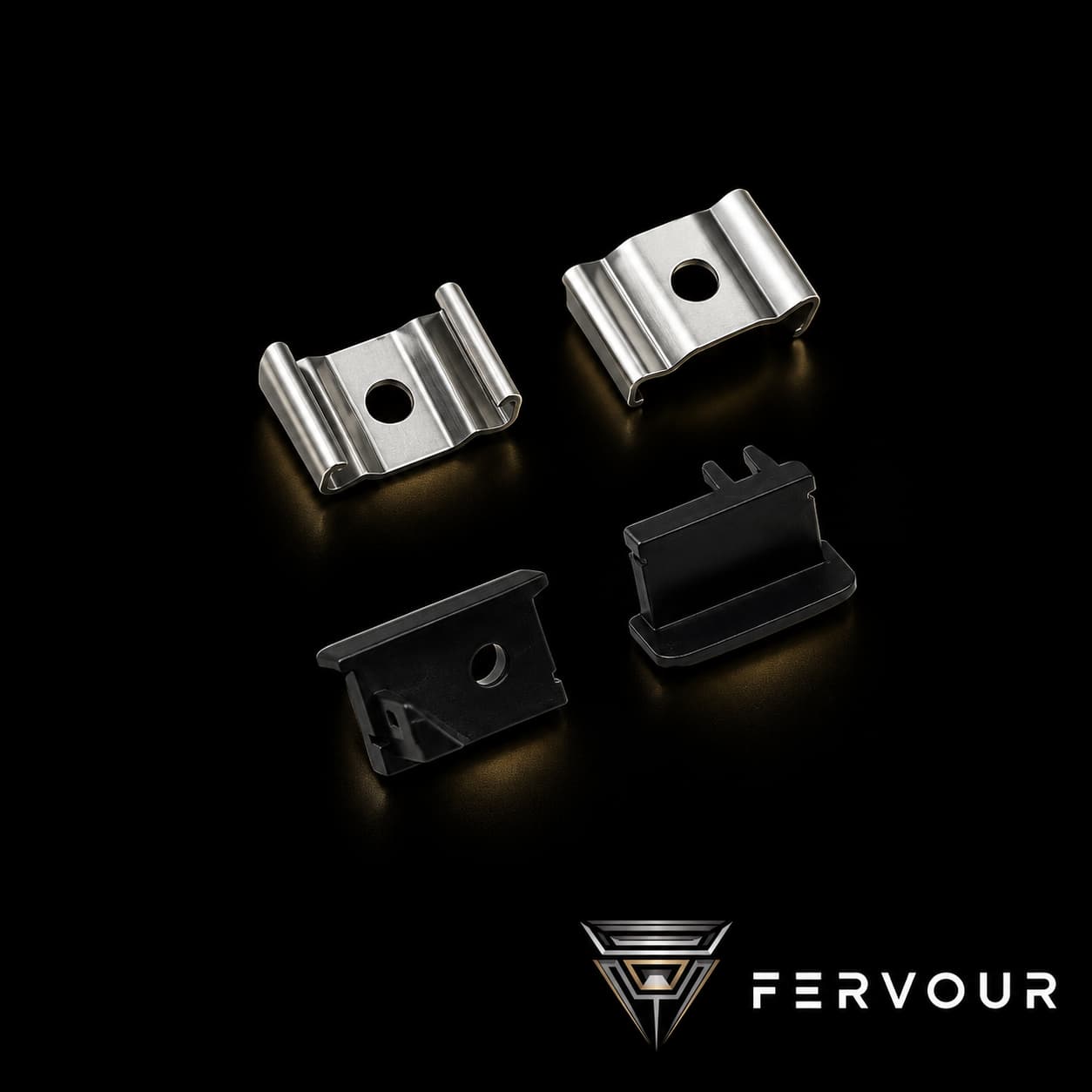

| Accessories | Clips & End caps |

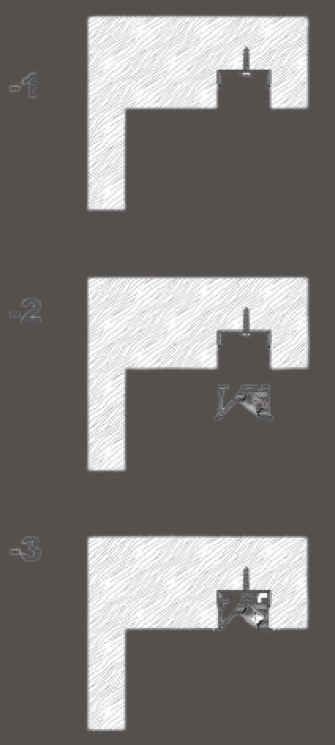

| Installation Type | Recessed |
| Profile IP Rating | IP20 |
| Aluminum Weight | 124g/m |
